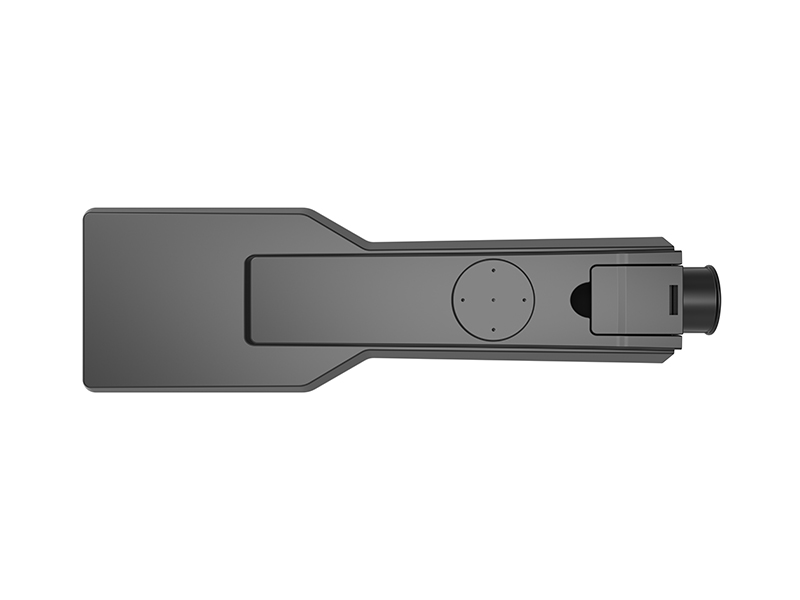

LED Street Light YASL-21M
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-10°to+15°
 |
 |
| 90 degree installation | Front |
 |
 |
| Back | Side |
Product Specification
| Product Code | YASL-21-40M | ||||||
| Input Wattage | 60W | ||||||
| Color Temperature | 2700～6500K | ||||||
| Luminous Flux | 8100-8700lm | ||||||
| Input Voltage | AC90～305V | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | ||||||
| Temperature of Working Condition | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| LED Lifetime | 50000h | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK09/10 | ||||||
| Installation Pipe Diameter | φ45/60mm | ||||||
| Installation Height | 4-8m | ||||||
| Net Weight | 3.3kgs | ||||||
| Gross Weight | 3.8kgs | ||||||
| Packing Size（m m） | 660*230*170 | ||||||
LED Street Light YASL-21M
Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 150 lm/w and will be capable of producing.
Up to 27000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
 |
 |
 |
Product Size
| Product Code | YASL-21-40M | ||||||
| L（mm） | 564 | ||||||
| W（mm） | 165 | ||||||
| H（mm） | 125 | ||||||
