LED Street Light YASL-24
lnstalling Ways:
Both Horizontal and Vertical available and adjustable angle-15°to+15°
 |
 |
| 90 degree installation | Front |
 |
 |
| Back | Side |
Product Specification
| Product Code | YASL-24-60 | ||||||
| Input Wattage | 60W | ||||||
| Color Temperature | 2700～6500K | ||||||
| Luminous Flux | 7800-9000lm | ||||||
| Input Voltage | AC90～305V | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | PF≥0.95 | ||||||
| color rendering index | Ra≥70 | ||||||
| Temperature of Working Condition | -40～50℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| LED Lifetime | 50000h | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK08/09/10 | ||||||
| Installation Pipe Diameter | φ45/60mm | ||||||
| Installation Height | 4-8m | ||||||
| Net Weight | 3.3kgs | ||||||
| Gross Weight | 4.0kgs | ||||||
| Packing Size（m m） | 520*310*170 | ||||||
LED Street Light YASL-24
Product Description
This series is a high-performance street lighting available in three sizes.
The lunimaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 130 lm/w and will be capable of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
IP66 CE ROHS
 |
 |
 |
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S | ||||||||
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M | ||||||||
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |

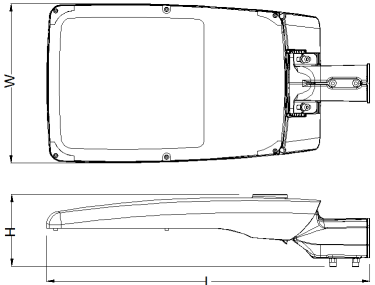

Product Size
| Product Code | YASL-24-60 | ||||||
| L（mm） | 481 | ||||||
| W（mm） | 260 | ||||||
| H（mm） | 131 | ||||||
